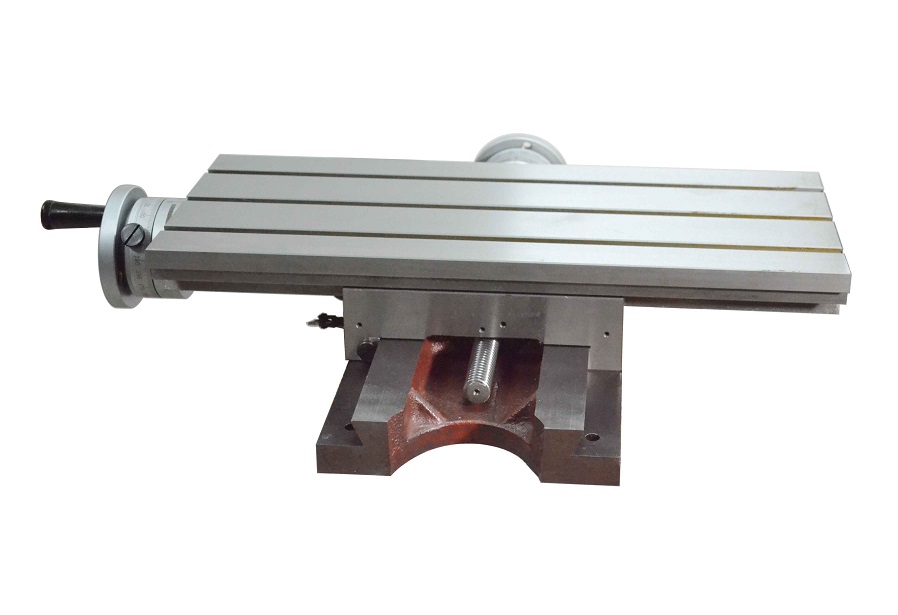

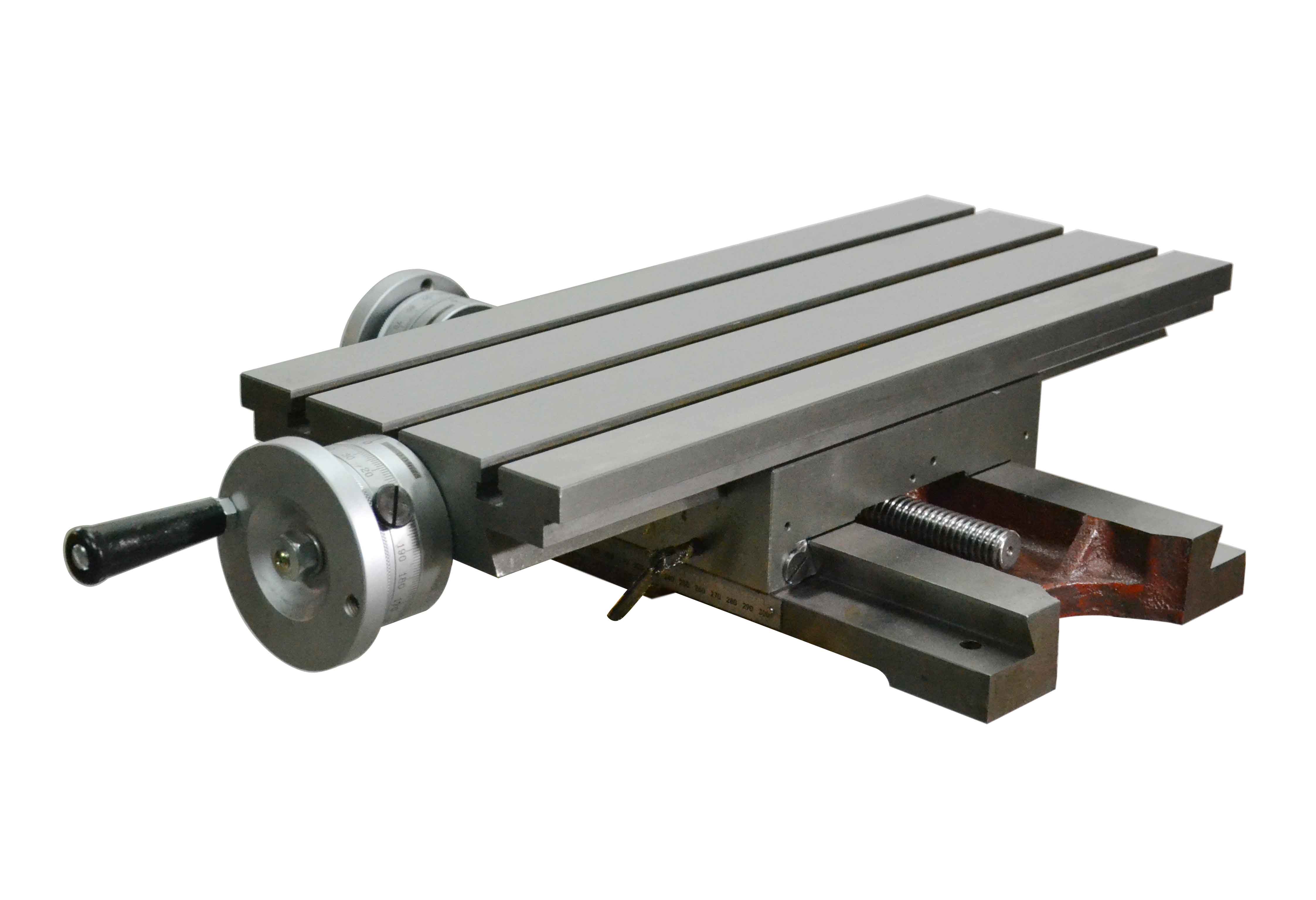

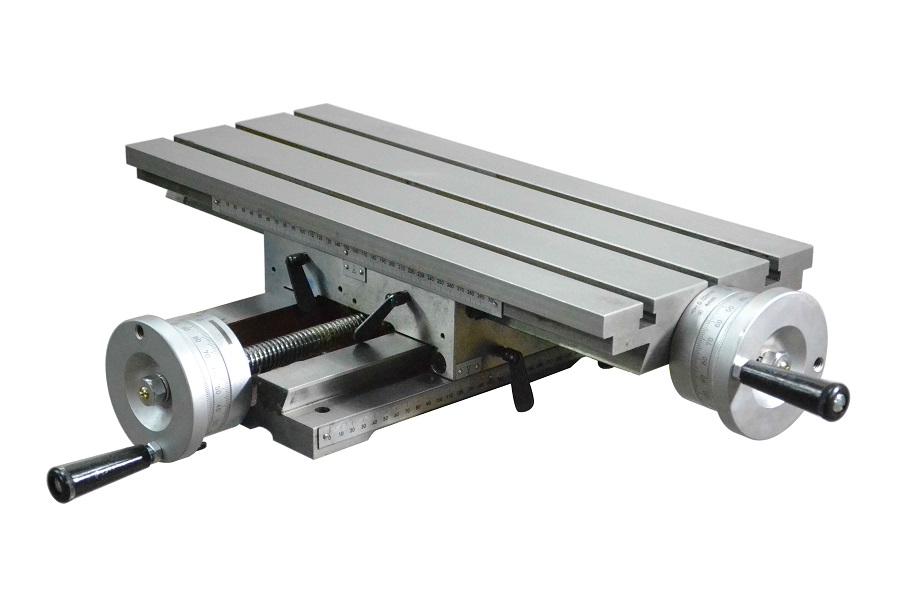

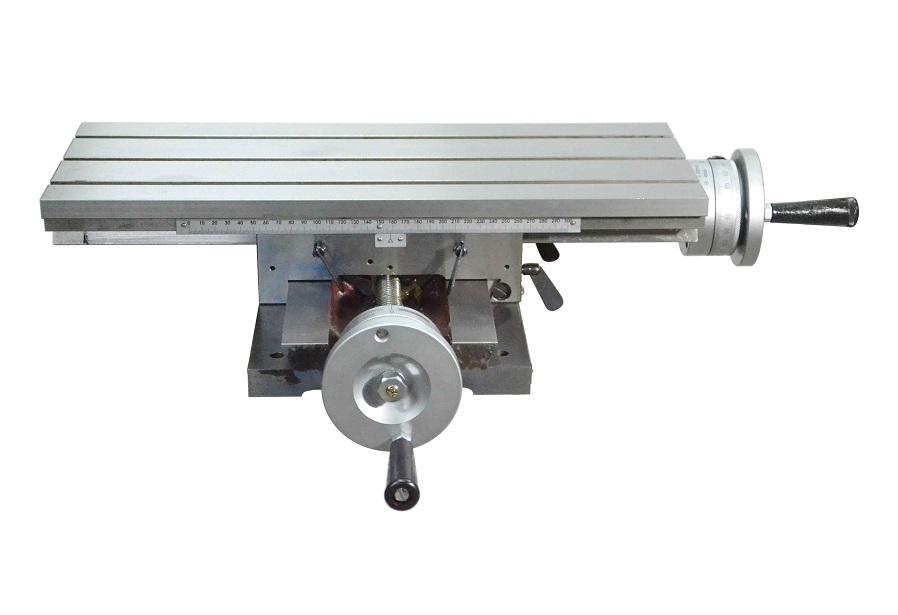

T-Slot 300X250 Cross Slide Vise Table
Cross Slide Vise Table is made with following good points:
This is more accurate cross table and perfect for the machinist.
Features:
- Fine graduations precision grinding.
- The backlash is adjustable.
- Locks for precise location.
- Heavy load on the center.
- Mounted on drilling / tapping / milling / specially purpose machine.
DESCRIPTION
Video displays please see : https://www.youtube.com/channel/UCb-oYLVxWdp9kHQ3swChEDw
SPEC
|
益彰機械股份有限公司/宏達機械廠 Yi Chang Machinery Co., Ltd/Horng Dar Brand |
|
|
Table Size |
520mm x 210mm |
|
Travel |
X300mm Y250mm * |
|
Overall Height |
115mm (30% thinner than former type) |
|
Graduations |
0.05 |
|
T- Slot Size |
8mm (5/16”) |
|
Weight |
50kg |
|
Straightness Of Surface |
0.05 |
|
Parallelism Between Surface And Bottom |
+-0.03 / 100mm |
|
＊ Y axis may cut short when mounted on 1HP drill machine. ＊ Optical scale (linear) is available. |
|
