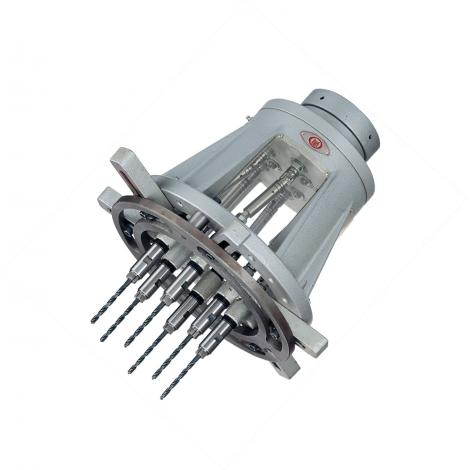

Multiple Spindle Head (Tap/Drill) QU Type/QNU Type
Multiple Spindle Head (Tap/Drill) - QU Type/QNU Type is made with following good points:
1. The most used model in market , the only company to make this type with Japanese made universal joints.
2. Customized type is available.
3. Quality made in Taiwan.
DESCRIPTION

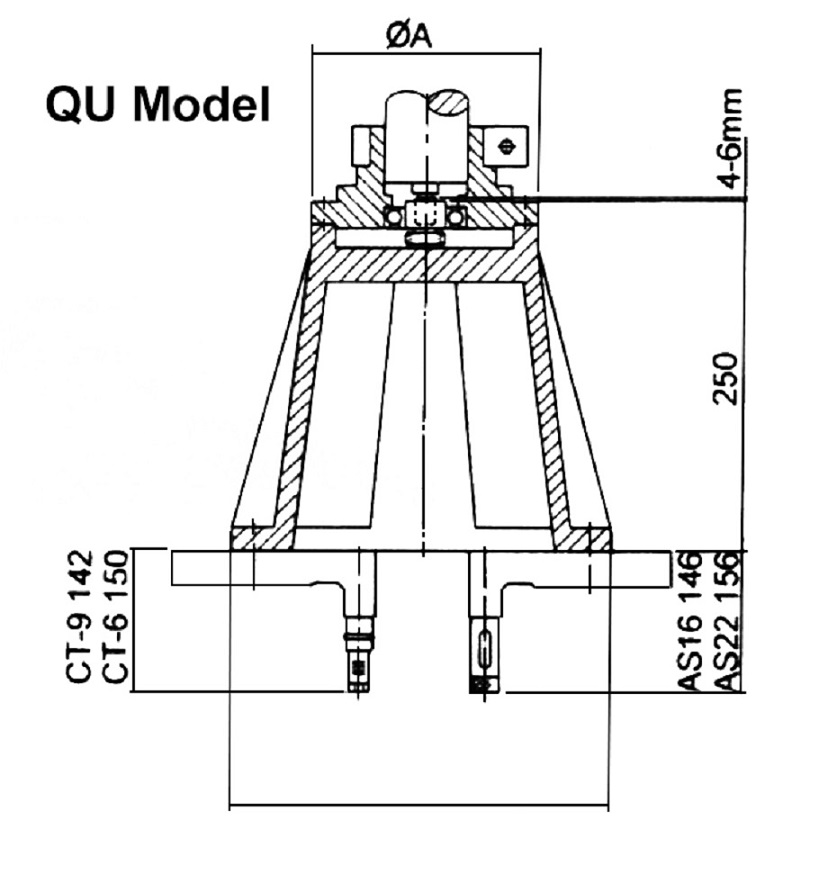

SPEC
|

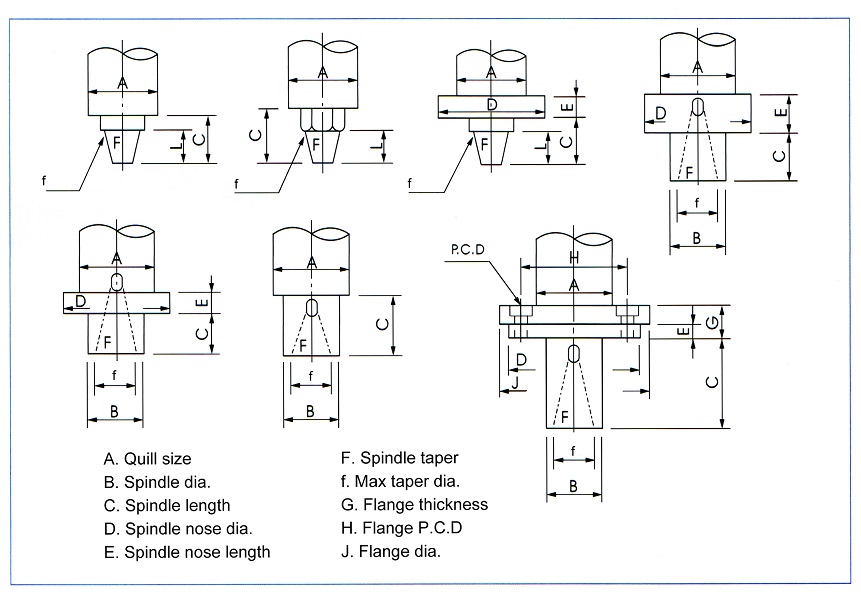

Dimensions / Type |
QNU165 |
QU165 |
QU200 |
QU250 |
QU300 |
|
|
Max. Spindle PCD (mm) |
165 |
165 |
200 |
250 |
300 |
|
|

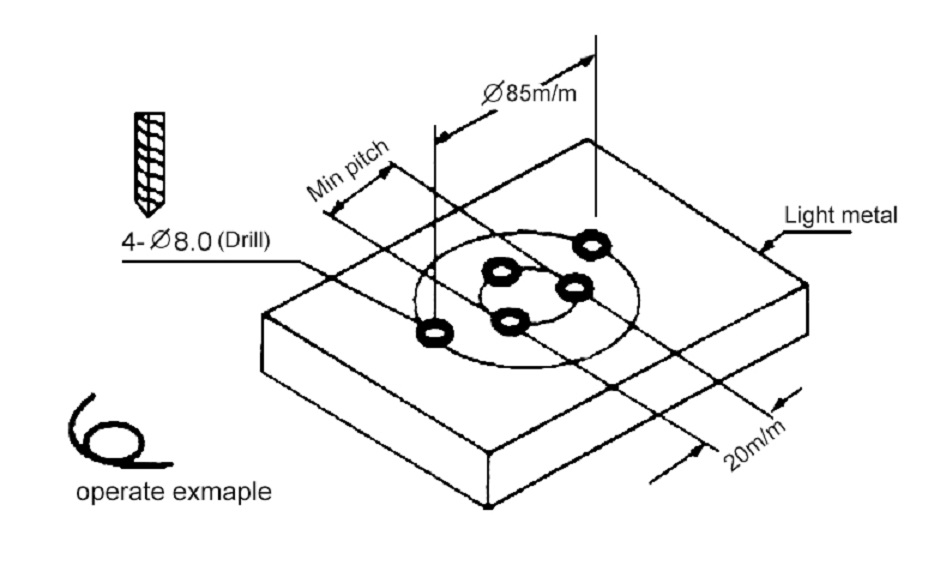

Min. Spindle Pitch By Every 2 Spindles (mm) |
12.7 |
C6= 18.7 C9= 29 |
C6= 18.7 C9= 29 |
C6= 18.7 C9= 29 |
C6= 18.7 C9= 29 |
|
|
Max. Working Capacity |
Drill Capacity (mm) |
4.5 |
C6= 6.0 C9= 8.0 |
C6= 6.0 C9= 8.0 |
C6= 6.0 C9= 8.0 |
C6= 6.0 C9= 8.0 |
|
Tapping Capacity |
M4 |
C6= M6 C9= M10 |
C6= M6 C9= M10 |
C6= M6 C9= M10 |
C6= M6 C9= M10 |
|
|
RPM Ratio To Main Spindle |
1:1 |
1:1 |
1:1 |
1:1 |
1:1 |
|
|
Numbers Of Spindle |
2-8 |
2-8 |
2-10 |
2-12 |
2-12 |
|
