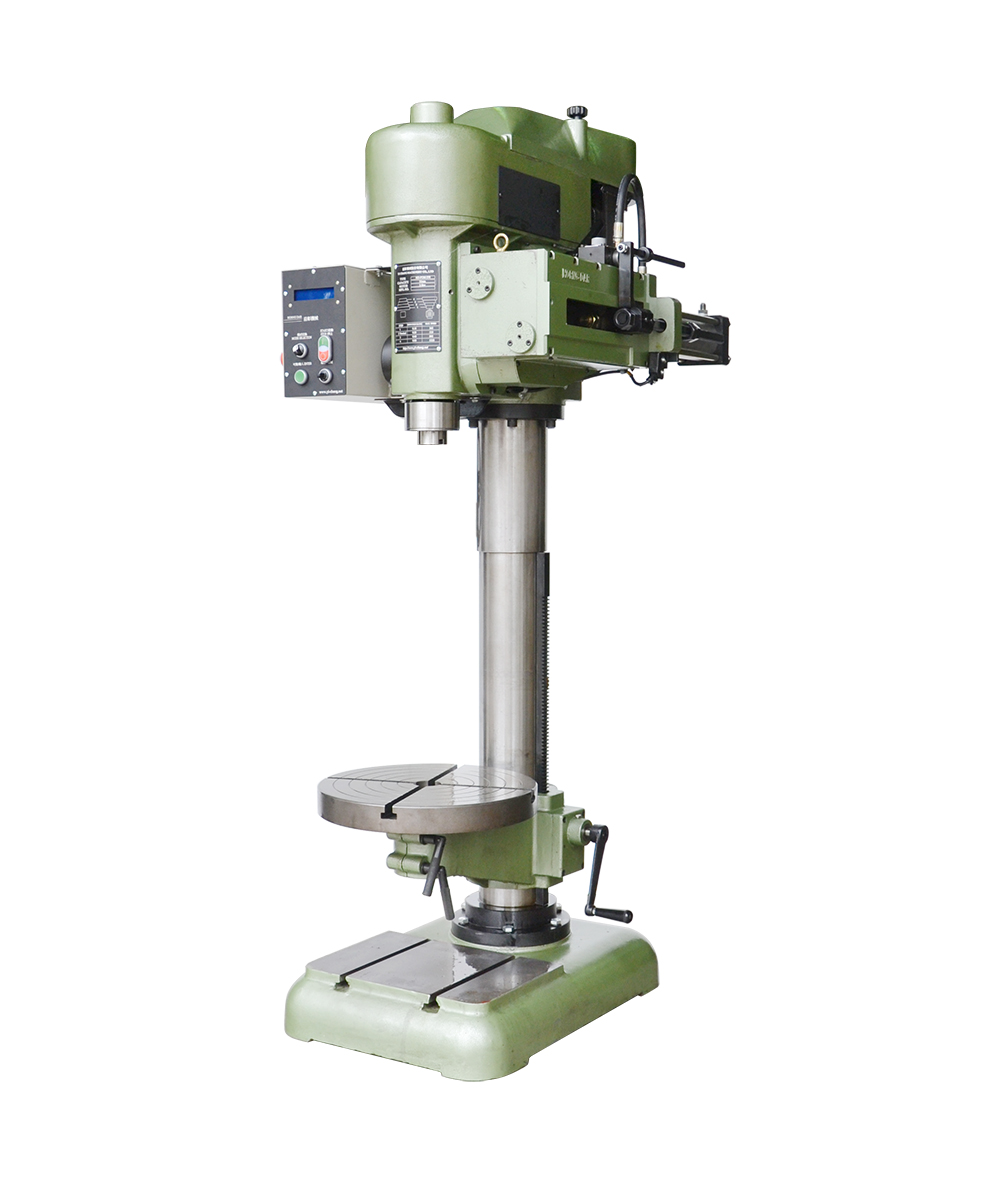

Automatic Drilling Machine Servo Energy Saving HD-POM350
Automatic Drilling Machine Servo Energy Saving HD-POM350 is made with following good points:
1. Energy saving with servo motor control system.
2. Easy knob to set spindle RPM.
3. Steady machine body to do max 35mm drilling.
4. Self-developed control unit, suitable to all our products.
DESCRIPTION
Video displays please see : https://www.youtube.com/channel/UCb-oYLVxWdp9kHQ3swChEDw
SPEC
|
Specifications / Model |
Automatic Tapping Machine |
Automatic Drilling Machine (Hydraulic) |
Tapping & Drilling Machine |
||
|
HD-POM350 |
|||||
|
Stroke Method |
Automatic |
Automatic (Hydraulic) |
D: Automatic (Clutch) |
||
|
Spindle Speed RPM |
50HZ |
166-829 |
127-961 |
127-961 |
|
|
60HZ |
200-995 |
150-1140 |
150-1140 |
||
|
Working Ability |
1 spindle |
Steel |
M5-M20 |
15-35 |
D: 35 |
|
Stroke (mm) |
130 |
150 |
150 |
||
|
Spindle Type |
MT3 |
MT4 |
MT4 |
||
|
Motor (kw) |
2 |
3.5 |
3.5 |
||
|
Weight (kg) |
250 |
260 |
260 |
||
|
1. The practical working abilities are very related with sharpness on drill bit, good lubrication and suitable cooling. |
|||||
