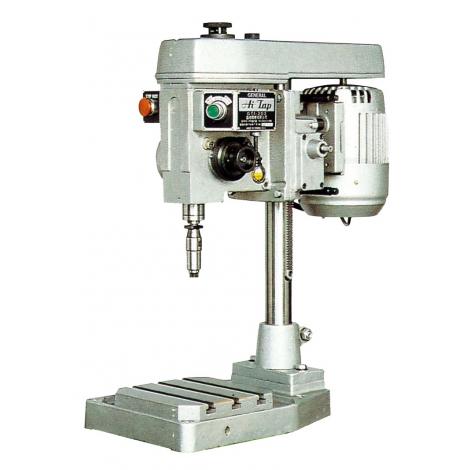

Tapping Machine Automatic HT1-203
Tapping Machine Automatic HT1-203 is made with following good points:
1. A classic and popular model which is used very often in specialized machines.(Horizontal model is available.)
2. Quality made in Taiwan.
DESCRIPTION
Video displays please see : https://www.youtube.com/channel/UCb-oYLVxWdp9kHQ3swChEDw
SPEC
|
Specifications / Model |
HT1-203 |
||||||
|
Stroke |
Automatic |
Automatic |
Automatic |
Automatic |
Automatic |
||
|
Spindle Type |
Inside Spindle |
MT2 |
MT3 |
X |
MT2 | MT3 | |
|
For Chuck |
JT6 |
JT6 |
JT2 |
JT6 | JT6 | ||
|
Working Ability |
Steel (S45C) |
3-13 |
5-20 |
2-8 |
5-16 |
10-32 |
|
|
Spindle Travel (mm) |
93 |
133 |
45 |
65 |
65 |
||
|
Motor |
1HP-4P |
2HP-6P |
1/2HP-4P |
1HP-6P |
2HP-6P |
||
|
Spindle Speed RPM (Steps) |
50HZ |
256-1278 (8) |
166-829 (6) |
420-1340 (3) |
155-515 (3) |
50-200 (3) |
|
|
60HZ |
308-1534 (8) |
200-995 (6) |
500-1600 (3) |
190-620 (3) |
60-240 (3) |
||
|
Weight (kg) |
112 |
234 |
97 |
200 |
250 |
||
|
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling. 2. Customized spindle speed might be required for particular materials or drilling sizes. |
|||||||
