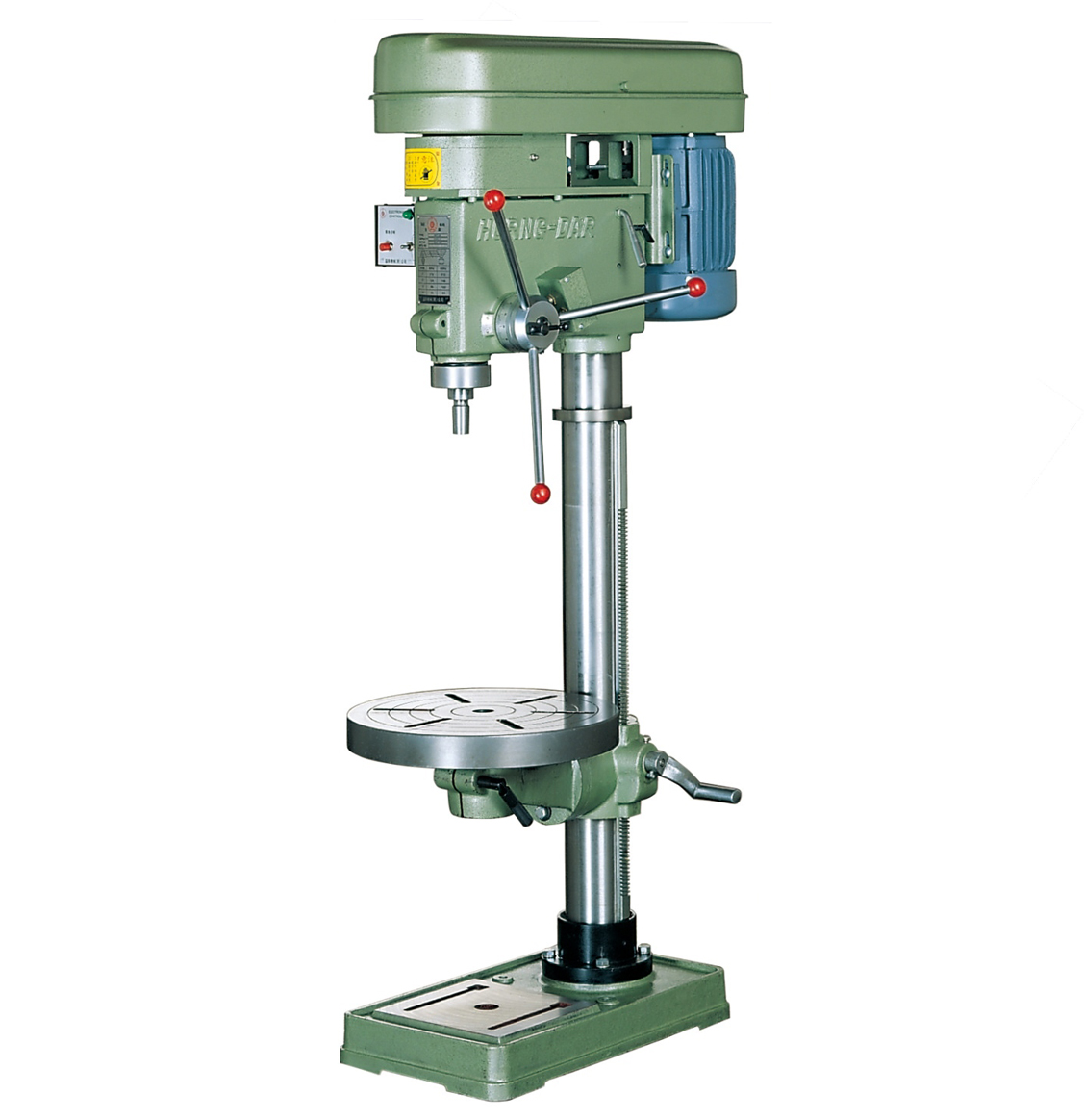

Tapping Machine Precision HDT-32
Tapping Machine Precision HDT-32 is made with following good points:
1. Yi Chang produced Horng Dar brand Bench Tapping Machines are all installed with self designed and produced Electronic Control Device for the best use of our machines. Unlike other outside electronic control device providers, we provide after sale service and maintenance.
2. The motor is designed to stand high heat to increase the life of the machine.
3. Spindle rpm reducing system (gear type) offer max of the torque for big size tapping.
4. Quality made in Taiwan.
DESCRIPTION
Video displays please see : https://www.youtube.com/channel/UCb-oYLVxWdp9kHQ3swChEDw
SPEC
|
Specifications / Model |
HDT-32 |
||||
|
Stroke |
Manual |
Manual |
Manual |
||
|
Spindle Type |
Inside Spindle |
MT2 |
MT3 |
MT3 |
|
|
For Chuck |
JT6 |
JT6 |
JT6 |
||
|
Working Ability (Steel S45C) |
Drill Capacity |
3-16 |
5-25 |
15-32 |
|
|
Tapping Capacity |
3-13 |
5-20 |
15-32 |
||
|
Spindle Travel (mm) |
100 |
140 |
140 |
||
|
Motor |
1HP-4P |
2HP-6P |
2HP-6P |
||
|
Spindle Speed RPM (Steps) |
50HZ |
250-960 (9) |
160-1342 (9) |
55-175 (4) |
|
|
60HZ |
300-1150 (9) |
190-1610 (9) |
65-210 (4) |
||
|
Weight (kg) |
101 |
204 |
221 |
||
|
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling. 2. Customized spindle speed might be required for particular materials or drilling sizes. |
|||||
