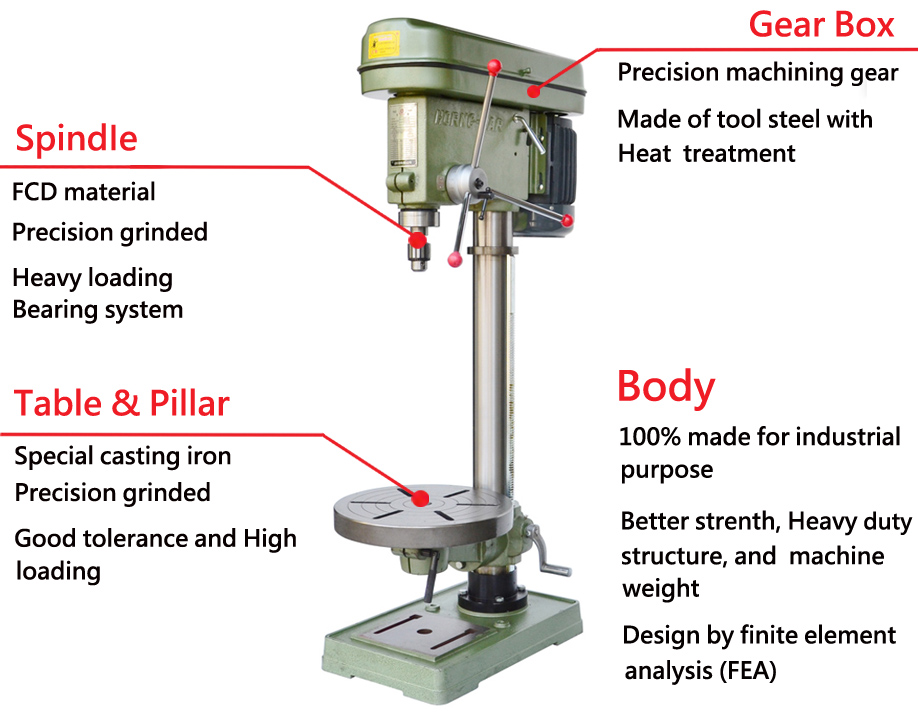

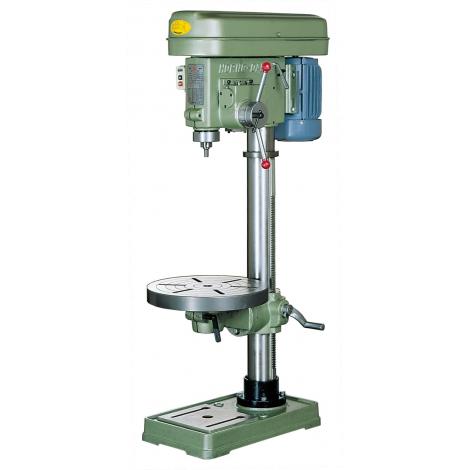

Drilling Machine Automatic (Clutch Type) HD-250
Drilling Machine Automatic (Clutch Type) HD-250 is made with following good points:
1. Yi Chang produced Horng Dar brand Bench Drilling Press Machine (clutch type) is with the unique clutch design for Preset Depth Model, which enable the spindle to stroke automatically and to reposition itself after use. This design improves the efficiency at the production line.
2. In consideration of easier maintenance on the production line, the machine is designed and assembled by groups of parts, users do not need to take the whole machine from the line, but just a small group for fixing.
3. Quality made in Taiwan.
DESCRIPTION
SPEC
|
Specifications / Model |
HD-250 |
|||
|
Stroke |
Automatic |
Automatic |
Automatic |
|
|
Spindle Type |
Inside Spindle |
MT2 |
MT3 |
MT4 |
|
For Chuck |
JT6 |
JT6 |
||
|
Working Ability |
Steel (S45C) |
3-16 |
5-25 |
15-35 |
|
Spindle Travel (mm) |
93 |
133 |
153 |
|
|
Motor |
1HP-4P |
2HP-6P |
3HP-4*8P |
|
|
Spindle Speed RPM (Steps) |
50HZ |
466-1675 (4) |
200-1600 (9) |
127-961 (8) |
|
60HZ |
560-2010 (4) |
210-1700 (9) |
150-1140 (8) |
|
|
Weight (kg) |
102 |
206 |
492 |
|
|
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling. 2. Customized spindle speed might be required for particular materials or drilling sizes. |
||||
