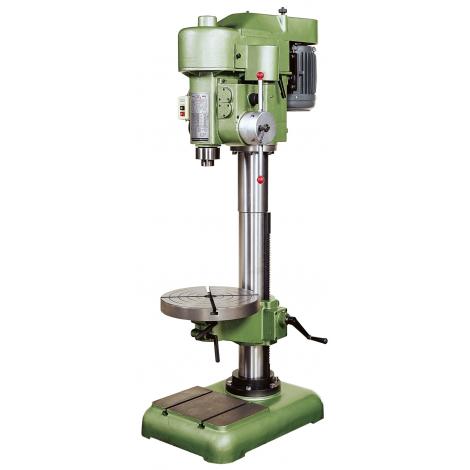

Drilling Machine Automatic (Clutch Type) HD-350
Drilling Machine Automatic (Clutch Type) HD-350 is made with following good points:

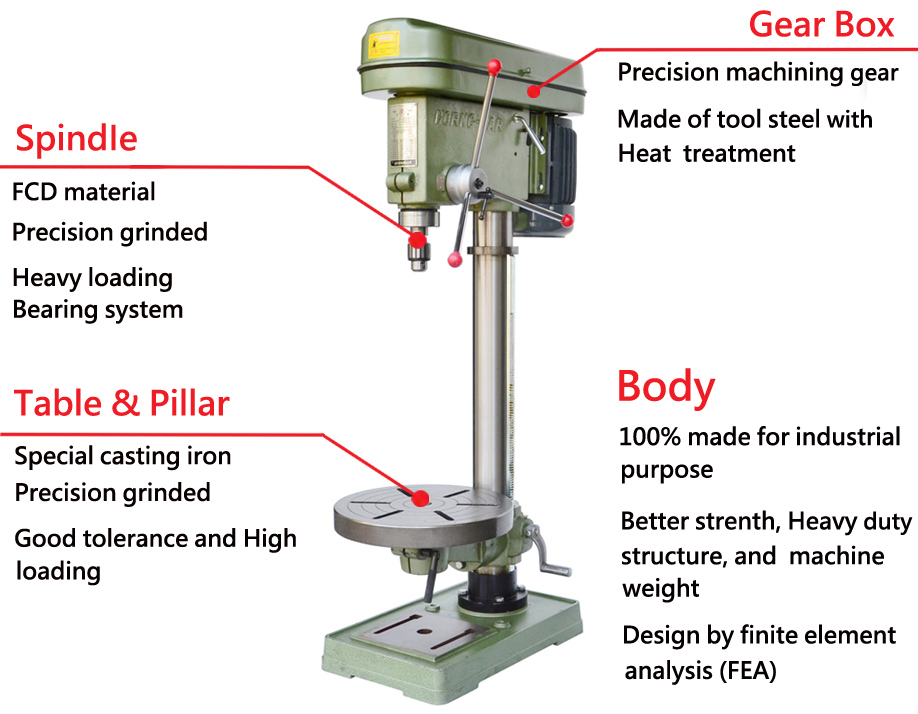

1. Yi Chang produced Horng Dar brand HD-350 Bench Drilling Press Machine is in response to the demand for 35mm drilling, it is designed to strengthen the structure of the body to increase the drilling power. Its performance is precise and stable, and is able to decrease the damage to the drill bits.
2. In consideration of easier maintenance on the production line, the machine is designed and assembled by groups of parts, users do not need to take the whole machine from the line, but just a small group for fixing.
3. HD-350 has 6 steps of rpm setting, and is designed with a easy setting system for arranging them.
4. Quality made in Taiwan.
DESCRIPTION
Video displays please see : https://www.youtube.com/channel/UCb-oYLVxWdp9kHQ3swChEDw
SPEC
|
Specifications / Model |
HD-350 |
|||
|
Stroke |
Automatic |
Automatic |
Automatic |
|
|
Spindle Type |
Inside Spindle |
MT2 |
MT3 |
MT4 |
|
For Chuck |
JT6 |
JT6 |
||
|
Working Ability |
Steel (S45C) |
3-16 |
5-25 |
15-35 |
|
Spindle Travel (mm) |
93 |
133 |
153 |
|
|
Motor |
1HP-4P |
2HP-6P |
3HP-4*8P |
|
|
Spindle Speed RPM (Steps) |
50HZ |
466-1675 (4) |
200-1600 (9) |
127-961 (8) |
|
60HZ |
560-2010 (4) |
210-1700 (9) |
150-1140 (8) |
|
|
Weight (kg) |
102 |
206 |
492 |
|
|
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling. 2. Customized spindle speed might be required for particular materials or drilling sizes. |
||||
